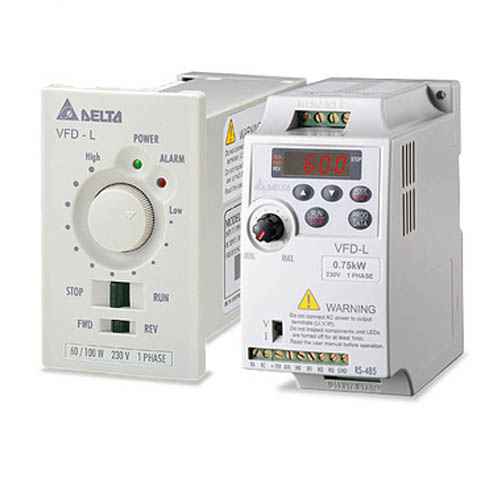

Delta VFD007L21A – Compact and Panel-Installation Drives

AC Drives, VFD-L Series
ITEM # VFD007L21A
MFG # VFD007L21A
Series VFD-L
Drive, AC, 1HP, 240V, 1PH/3PH, 4.2A, CT

Sub-fractional low cost AC Drive. Specifically designed for low horsepower applications with built-in EMI filter to efficiently reduce electromagnetic interference and to conform to the CE EMI directive.


Specifications

Item Number: VFD007L21A
Manufacturer: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-L
Nominal Input VAC: 240 Volts AC
HP (CT): 1 Horsepower
Amps (CT): 4.2 Amps
Input Phase: 1 or 3
Operator Controls: Built In
Max. Frequency: 400 Hertz
Braking Type: DC Injection
Motor Control-Max Level: V/Hz (Scalar)
Closed Loop: No
AC Line Regenerative?: No
Dynamic Braking Trans?: Not Available
Frame Size: B1
Mounting: Panel
Height: 5.2 Inches
Width: 2.68 Inches
Depth: 5.04 Inches
H x W x D (in.): 5.2 x 2.68 x 5.04
