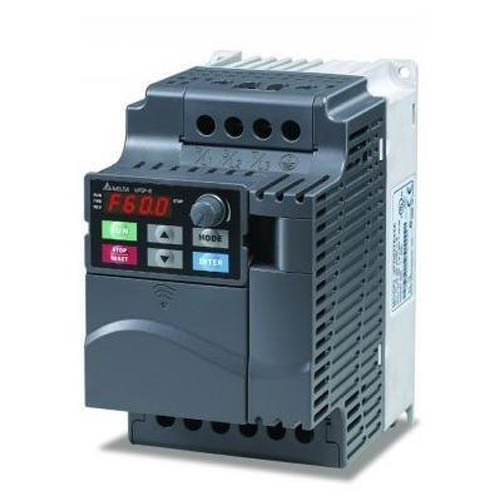

DELTA VFD E Series

The Delta VFD E series represent Delta Electronics low horsepower, constant torque, IP20 rated Drive. Modular in design with flexible extension cards and a built-in PLC function, the E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.

DELTA VFD-E SPECIFICATIONS
• Output frequency: 0.1 ~ 600Hz
• 3 points adjustable V/f curve
• Built-in PID feedback control
• RFI-switch for IT mains
• Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
• Use RS-485 communication interface (RJ-45) with Modbus protocol
• Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen
• Complete protection function

DELTA VFD-E APPLICATIONS
The entire Delta VFD E Series includes Smaller cranes; washing machines; treadmills; robot arm of injection machine (clamp); elevator; grinding machine; drilling machine; wood machine; webbing loom; air conditioner for large buildings; water supply system for large buildings, etc.

DELTA VFD-E DOCUMENTATION:
Delta VFD-E Series documentation is applicable with The Delta VFD022E43A AC Motor drive. Provided links enable you to download documentations such as manual, catalog and datasheet to provide specific information about the Delta VFD E Series.
