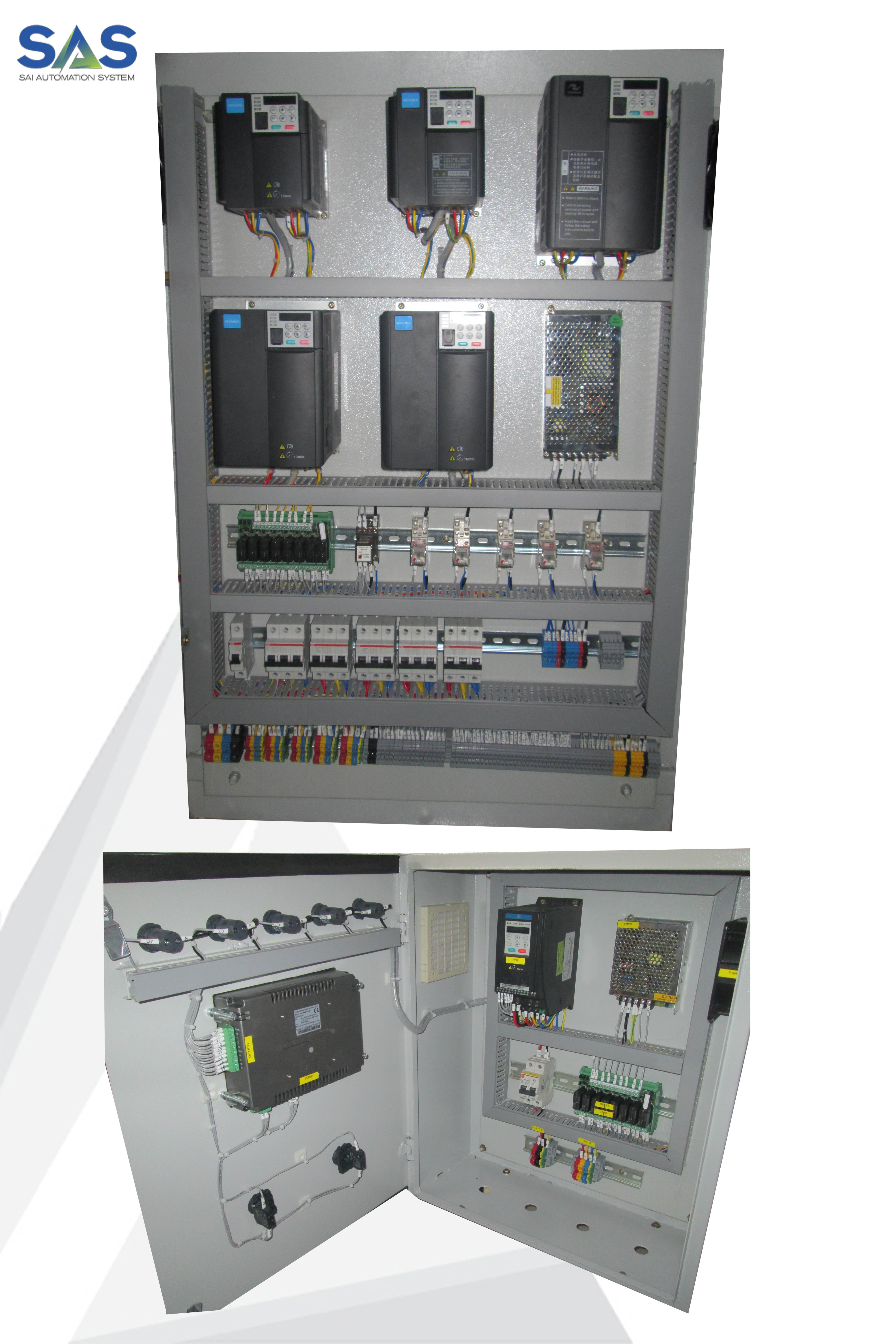

VFD Panel (Variable Frequency Drive Panel)


The VFD Panel (Variable Frequency drive panel) also known as VFD Control Panel are designed to control the speed of the electric motor and feed pump. They are widely used in drilling, pumping and other large machine applications like Conveyor and Compressor.

AC motor speed is controlled in two ways – either by controlling the voltage or frequency. Frequency controlling gives better control due to constant flux density than voltage control. This is where the working of VFDs comes to play. It is a power conversion device which converts the fixed voltage, fixed frequency of the input power to the variable voltage, the variable frequency output to control AC induction motors.

Most of the industrial applications require variable speeds at peak load conditions and constant speeds at normal operating conditions. Closed loop working of VFDs maintains the speed of the motor at a constant level, even in case of input and load disturbances.

Why VFDs Panels?

The two main features of VFD are adjustable speeds and soft start/stop capabilities. These two features make VFD’s a powerful controller to control the AC motors.

SPECIFICATIONS

Purge and Pressurized panels
Flameproof and Explosion Proof Panels
SIL Safety PLC systems
Distributed Control Systems
IEC 61439 Type Tested Assembly panels

Features

HT Panel is like LT Panel except that it is used for high tension cables.

LT panels are responsible for distributing the power to various sub LT panels by receiving it from the transformer. These are rated for 430 V, 3-phase, 50Hz, three or four wire system.

It is a floor mounted free standing unit and it is totally closed and extensible type. Its design includes all provisions for safety of operation as well as for maintenance personnel.

Features:
• Energy-efficient design
• Flawless finish
• Long-serving life

Benefits Of VFD:

Variable frequency drives not only offer adjustable speeds for accurate and precise control applications, but also have more benefits in terms of process control and conservation of energy. Some of these are given below.

Energy Saving
More than 65% of the power is consumed by electric motors in industries. Both magnitude and frequency control technique to vary the speed consumes less power when variable speed is required by the motor. So a great amount of energy is conserved by these VFD’s.

Closed Loop Controlling
VFD allows accurate positioning of the motor speed by continuously comparing with reference speed even at changes in the loading conditions and input disturbances like voltage fluctuations.

Limits Starting Current
Induction motor draws current which is of 6 to 8 times the nominal current at starting. Compared to conventional starters, VFD’s gives better results because it delivers low frequency at the time of starting. Due to low frequency, the motor draws less current and this current never exceeds its nominal rating at starting as well as operating.

Smooth Operation
It offers smooth operations at starting and stopping and also reduces thermal and mechanical stress on motors and belt drives.

High Power Factor
Inbuilt power factor correction circuit in the DC link of VFD reduces the need for additional power factor correction devices. The power factor for the induction motor is very low for particularly no-load application, while at full load, it is 0.88 to 0.9. Low power factor results in poor utilization of power due to high reactive losses.

Easy Installation
Pre-programmed and factory wired VFD’s offers easy way for connection and maintenance.
