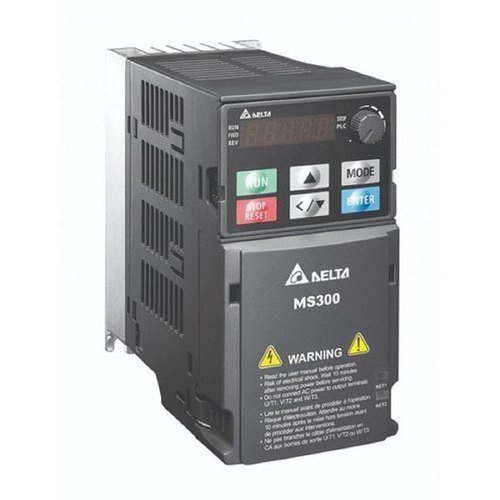

DELTA VFD MS300 Series

The Delta MS300 series are new generation compact AC drives that are Vector control capable. Delta MS300 drives are built with Delta’s superior drive technology with a significant reduction of size compared to previous drive products. Delta MS300 features flexibility as this drive supports both Induction Motors (IM) and Permanent Magnet (PM) motors and provides Safe Torque-Off (STO) safety capability.
The MS300 Delta drive series has built-in various essential functions, including PLC capacity for simple programming needs, capable of up to 2K steps. It provides a communication slot designed for a variety of communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system — all included in the MS300 series with drive size reduced up to 40%.

Delta MS 300 Specifications
• Supports Open-loop control of IM and PM motors
• Output Frequency: Standard models: 0 to 599 Hz, High speed models: 0 to 1500 Hz ( V/f Control)
• Dual rating design: 120% for 60 seconds for Normal Duty (ND), 150% for 60 seconds for Heavy Duty (HD)
• Built-in PLC program with 2K steps capacity
• Built-in brake choppers for the entire series
• Removable 5-digit LED keypad fpr remote operation
• Safety standard compliance: Safe Torque Off (SIL2/PLd)
• Multi-motor Control, built-in four IM motor control parameters
• Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
• One high speed pulse input terminals MI7 built-in with maximum speed up to 33kHz
• One high speed pulse output terminals DFM built-in with maximum speed up to 33kHz
• New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
• Built-in one slot do communication card installation: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP

Delta VFD MS300 Manual Documentation:
Technical documentation for Delta VFD-MS300 are available for download such as, Delta VFD-MS300 manual, catalog and datasheets.
